Intro
Molecular symmetry
- Atomistic systems display natural symmetry
- Objects in Euclidean space can undergo indistinguishable transformations
- Symmetry groups define basis of transformations
- Equivariance guarantees commutative properties of these transforms
$SO(3)$ rotation group
$G_{36}^{\dagger}$ nuclear permutation group
$SO(3)$ equivariance simplifies physics and compute
Intro
Deconstructing equivariance
- Tensor product formalism for preserving $SO(3)$ equivariance in neural representations implemented in
e3nn - Points in 3D space embedded in a basis of spherical harmonics—only equivariance preserving transformations are allowed
- Object ⇆ latents correspondence is highly desirable
Same framework as angular momentum coupling: equivariance preserving transformations are angular momentum conserving!
$$\psi_{lm} = \sum_{m_1m_2} C(l_1l_2l; m_1 m_2 m) \psi_{l_1m_1} \psi_{l_2m_2}$$
Clebsch-Gordon coefficients $C$ are non-zero only for specific combinations of angular momenta $l, l_1, l_2, m, m_1, m_2$
Intro
Deconstructing equivariance
$l=0,1,2$ have physical interpretations of scalar, vector, and tensor quantities
...but what do equivariant models actually learn?
How do higher angular momentum features affect modeling?
- Train a minimalist model on QM9 atomization energy prediction
- Decompose features into respective irreducible representations
- Project embedded structures in an interpretable way
Methods
Decoupling spherical harmonics
Symbolic reductions using sympy
WYSIWYG open-source kernel implementations up to $l=10$ with TritonLang
Portable performance across multiple hardware architectures
Methods
A toy equivariant model
Three interaction blocks yield node embeddings with $2l_\mathrm{max} + 1$ hidden features
Methods
Low-dimensional projections

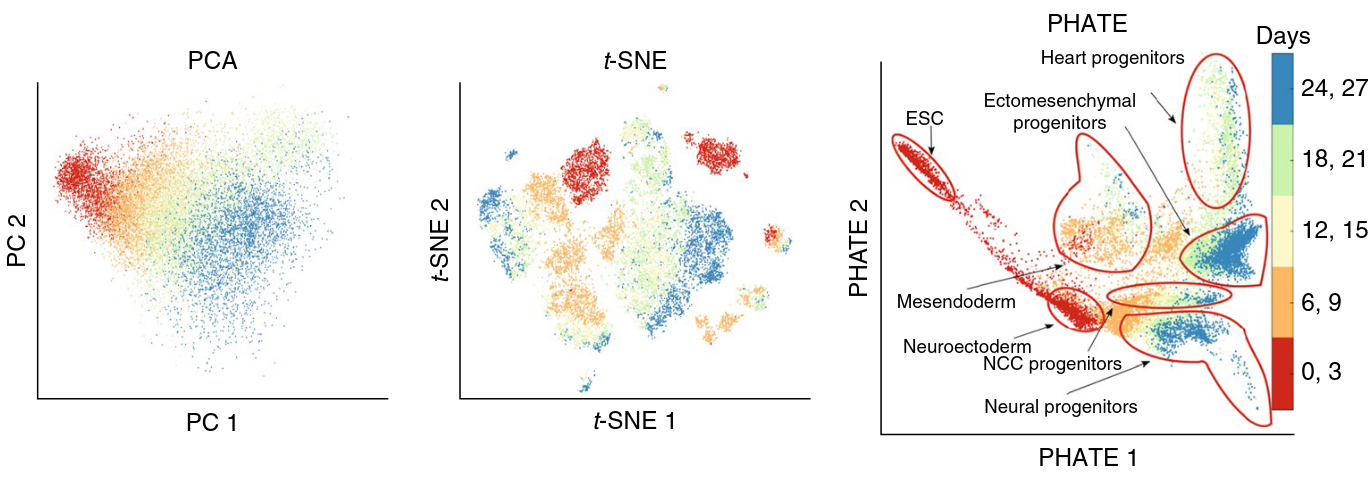

- Potential of heat-diffusion for Affinity-based transition embedding (PHATE) method for projecting high-dimensional latents for visualization
- Local relationships between data points captured through local Gaussian kernel
- Global relationships between data points modeled as diffusion probability
Results
QM9 performance—high angular momentum
| Configuration | Hidden dimension | # of parameters (M) | Test error (eV) ↓ |
|---|---|---|---|
| $[0, 1, 2]$ | 32 | 1.6 | 0.12 |
| $[0, 1, 2, 4]$ | 32 | 3.0 | 0.15 |
| $[0, 1, 2, 6]$ | 32 | 2.6 | 0.21 |
| $[0, 1, 2, 8]$ | 32 | 2.6 | 0.19 |
| $[0, 1, 2, 10]$ | 32 | 2.6 | 0.19 |
Adding higher $l$ alone does not improve test performance
Results
PHATE analysis

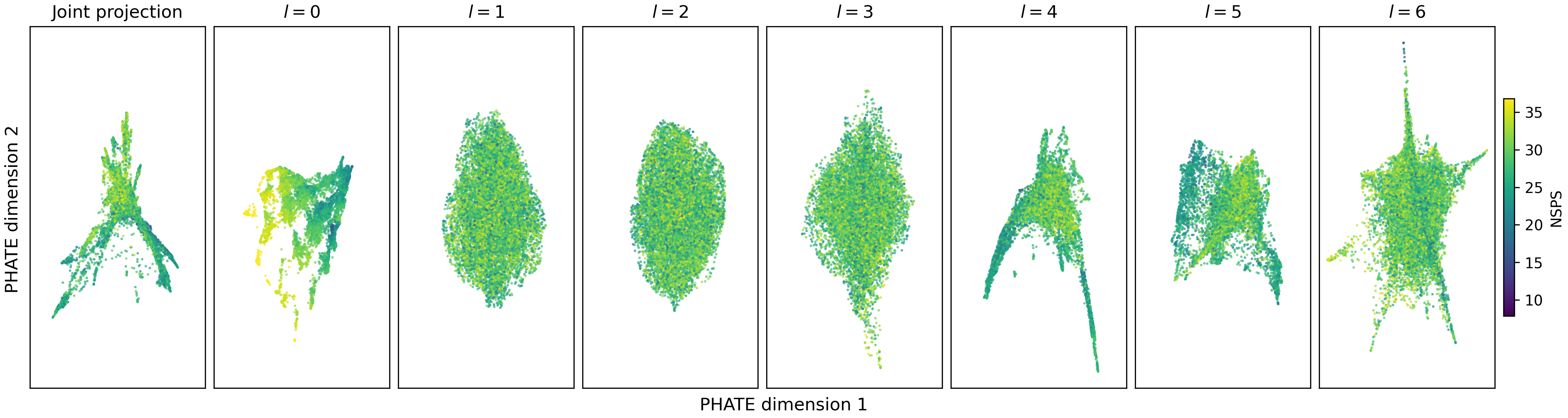

Points colored by molecular complexity (spacial score)
$l=1-3$ latents are largely unstructured and unused—test error 0.73 eV
Results
PHATE analysis

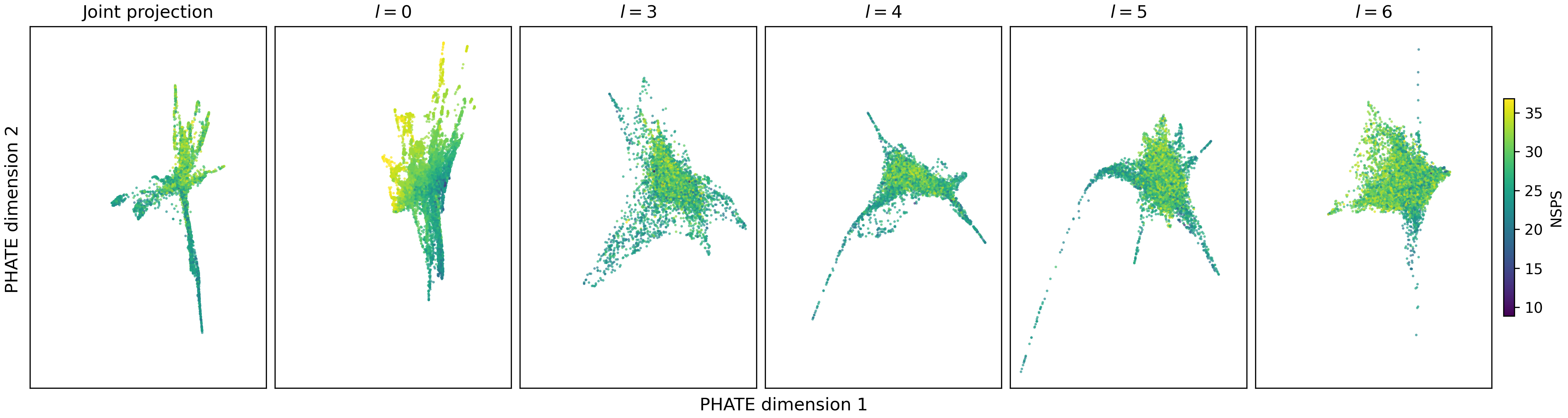

Ablating orders improves structure and test performance—test error 0.52 eV
Results
QM9 performance—larger sets
| Configuration | Hidden dimension | Epochs | # of parameters (M) | Test error (eV) ↓ |
|---|---|---|---|---|
| $[0, 1, 2, 3, 4]$ | 16 | 30 | 0.8 | 1.24 |
| $[0, 1, 2, 3, 4, 5, 6]$ | 16 | 30 | 1.9 | 0.73 |
| $[0, 1, 2, 3, 4, 5, 6, 7, 8]$ | 16 | 30 | 3.7 | 1.02 |
| $[0, 3, 4, 5, 6]$ | 16 | 30 | 0.8 | 0.52 |
| $[0, 1, 2, 3, 4]$ | 16 | 100 | 0.8 | 0.22 |
| $[0, 3, 4, 5, 6]$ | 16 | 100 | 0.8 | 0.01 |
Increasing $l$ alone does not improve test performance
Conclusions
What does it mean?
- Unused irreducible representations actually hinder quantitative performance
- Are equivariant features actually being used?
- $l=0$ dominates embeddings used for prediction—vector ($l=1$) and tensor ($l=2$) features should be able to do more
- Embeddings need discoverable, interpretable structure to behave predictably in deployment—to the limit of linear models
Conclusions
Why does it matter?
Neural networks are going to neural network—
we cannot take physical inductive biases for granted!
Qualitative embedding assessments may be required to get the best out of architectures
Need regularization/pre-training tasks that guarantee higher order terms to actually be used!
Future work
What about “real” models and data?
- Analysis on 10,000 random Materials Project Trajectory samples
- Pre-trained MACE “medium”
- Black squares correspond to 1000 out-of-distribution data (🪧 #63)

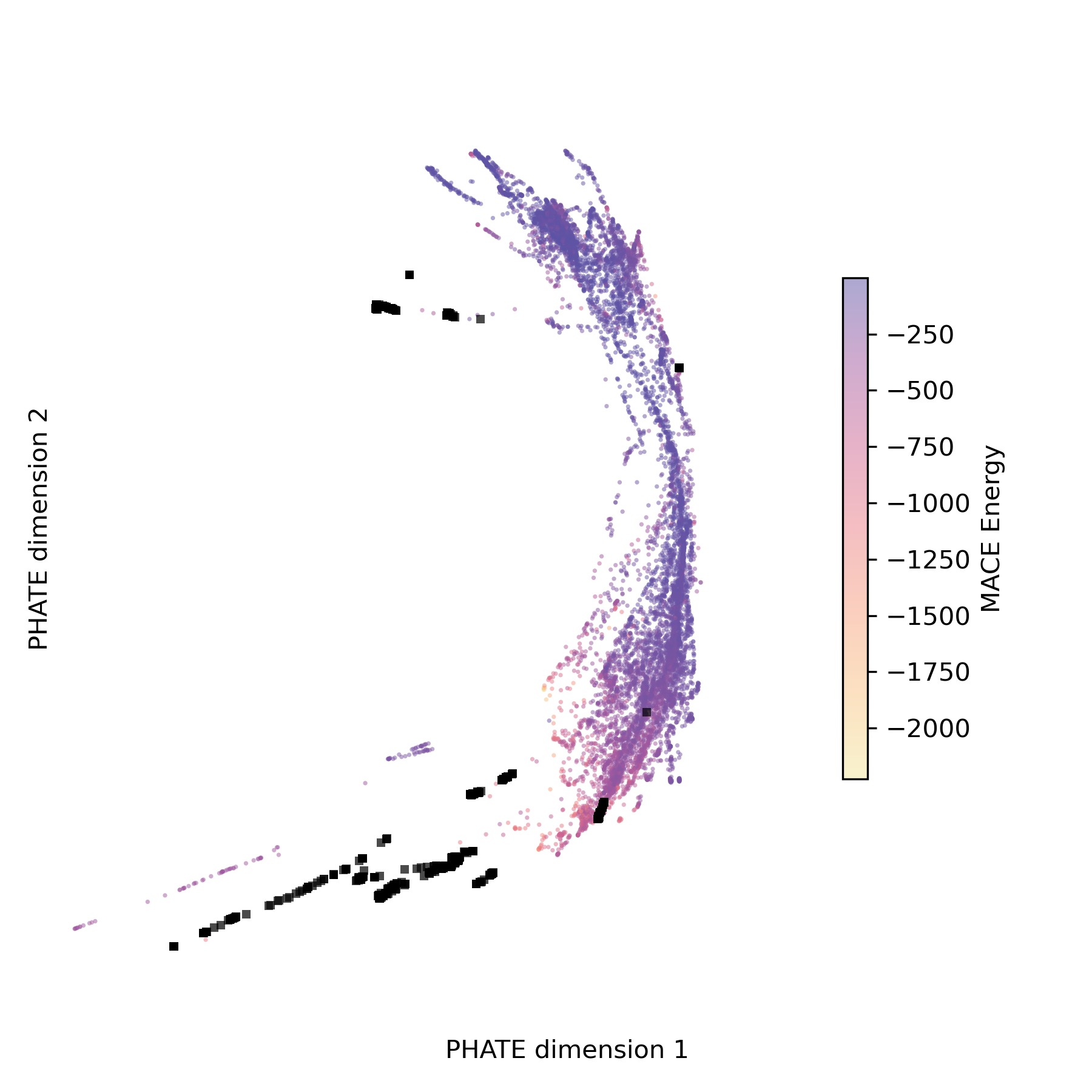

- PHATE projections of scalar embeddings (
node_feats); 640-element embeddings
Future work
What about “real” models and data?

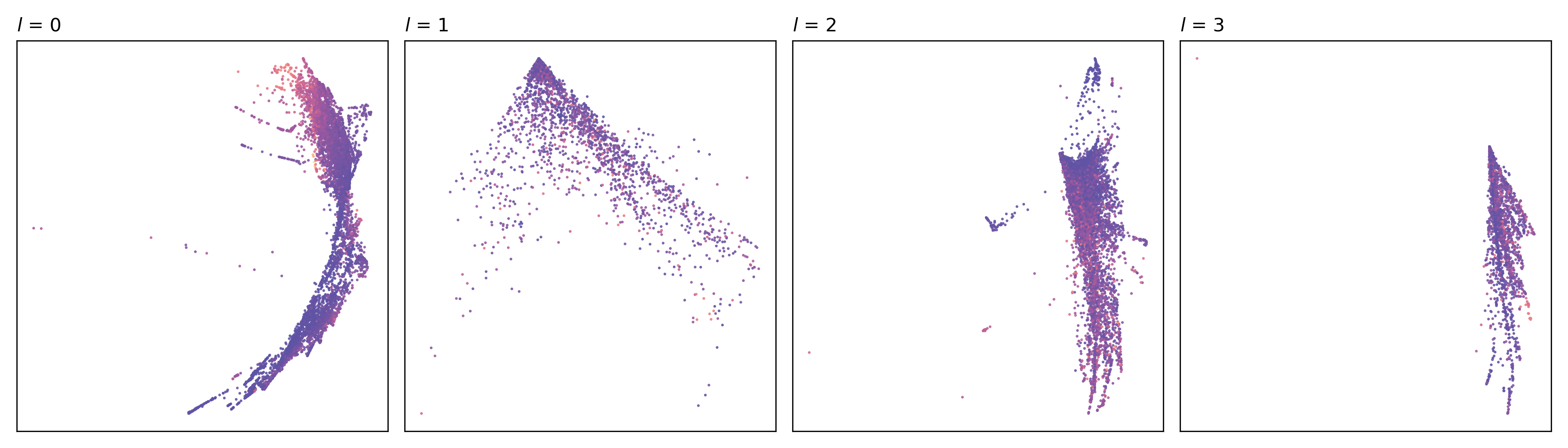

Decomposed projections without OOD samples
$l=1,3$ are largely unstructured, odd embedding placement
Future work
What about “real” models and data?

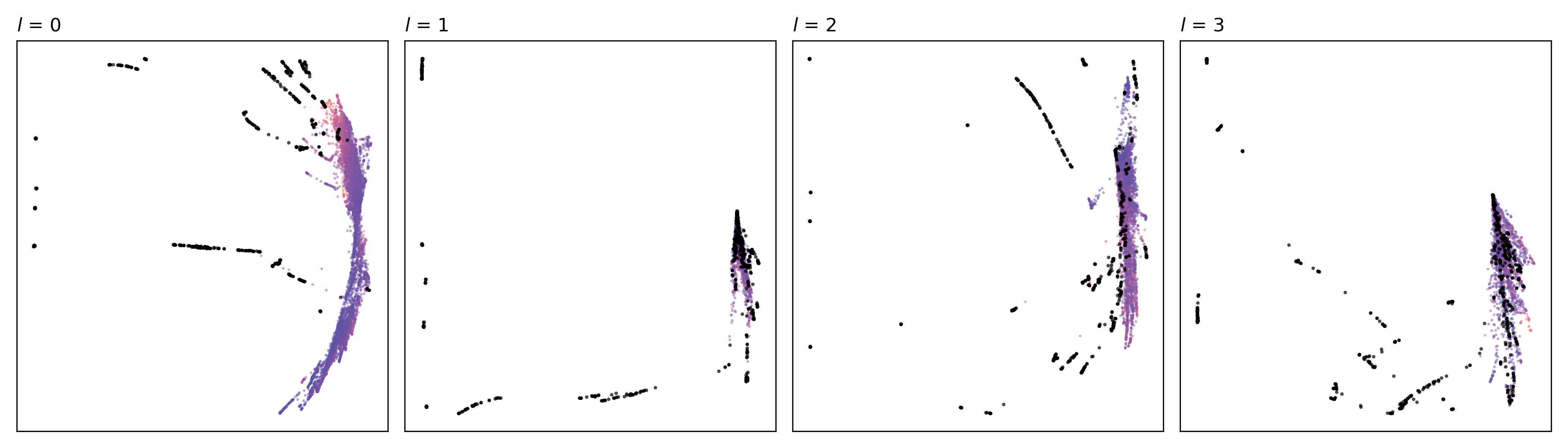

Decomposed projections with OOD samples
No semantic margin between in- and out-of-distribution smaples
Future work
Call to action
- Equivariant models like MACE may have untapped modeling performance
- Need qualitative, as well as quantitative comparisons to guide data, model, and task design
- Deeper insight into learning dynamics of tensor product models
